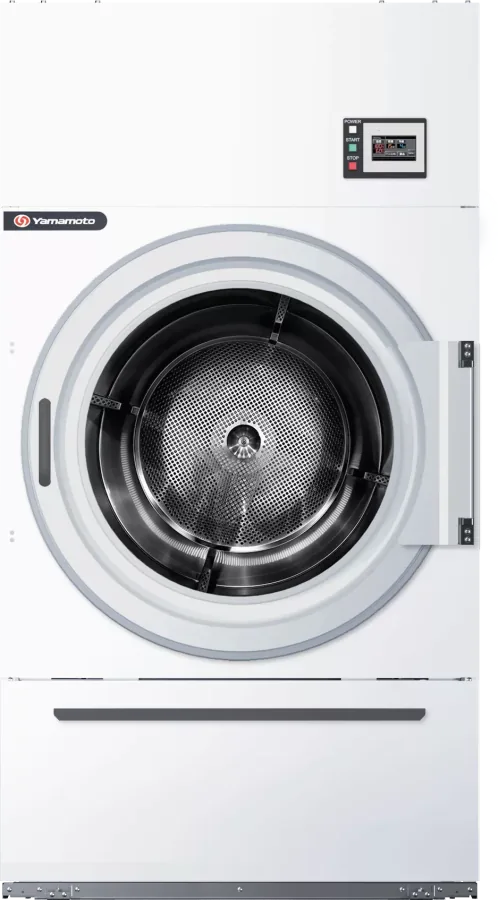

Yamamoto VUG Series Reversing Tumble Dryers
Reversing tumble dryers with a direct-drive, belt-free system and a 5-inch ProFace touchscreen, for On-Premises Laundry (OPL) operations, in two capacities: the 55 lb VUG550 and the 75 lb VUG750.
| VUG550 | 55 lb |
|---|---|
| VUG750 | 75 lb |
| Market | OPL |
|---|---|
| Type | Dryer |
| Drum | Reversing |
| Drive | Direct drive (belt-free) |
| Controls | 5-inch ProFace touchscreen |
| VUG550 | VUG750 | |
|---|---|---|
| Width | 34.5 in | 45.9 in |
| Electrical | 200–240 V, 50/60 Hz, 1-phase (15 A); or 100–120 V, 50/60 Hz, 1-phase (20 A) | 200–240 V, 50/60 Hz, 1-phase (15 A); or 100–120 V, 50/60 Hz, 1-phase (20 A) |
| Gas connection | 1/2 in NPT | 1/2 in NPT |
| Gas input | 112,600 Btu/h | 160,370 Btu/h |
| Gas pressure | Natural gas 5.0–10.5 in WC; LP 10–13 in WC | Natural gas 5.0–10.5 in WC; LP 10–13 in WC |
| Exhaust duct diameter | 7.87 in (200 mm) | 7.87 in (200 mm) |
| Maximum airflow | 795 cfm | 876 cfm |
| Maximum static pressure | 4.10 in WC | 6.91 in WC |
| Weight (empty) | 805 lb | 1,058 lb |
Source: Yamamoto VUG specification sheets (2025). Values as published by the manufacturer. Confirm installation requirements with us before you order or install.
Features
- Reversing basket
- Direct-drive, belt-free system
- 5-inch ProFace touchscreen
New equipment is covered by the applicable manufacturer warranty. LaundroFix serves as your point of contact and helps coordinate warranty support.
